Improve the comfort of your van or campervan with this 2-layer sound deadening and thermal insulation kit, combining PeaceMAT™ XR 2mm Butyl Sound Deadening Mats with ABSOFT™ 25mm Thermo Fleece Insulation.

The two materials perform different jobs and are designed to complement each other.

PeaceMAT™ XR is applied directly to the vehicle's metal panels as the first layer. Its heavy automotive-grade butyl construction helps dampen metal vibration, rattles and panel resonance, reducing unwanted road and vehicle noise.

ABSOFT™ 25mm Thermo Fleece is then used within suitable cavities and behind interior panels to provide additional sound absorption and thermal insulation, helping create a quieter and more comfortable vehicle interior.

Ideal for van conversions, campervans, motorhomes, commercial vans, cars and vehicle restoration projects.

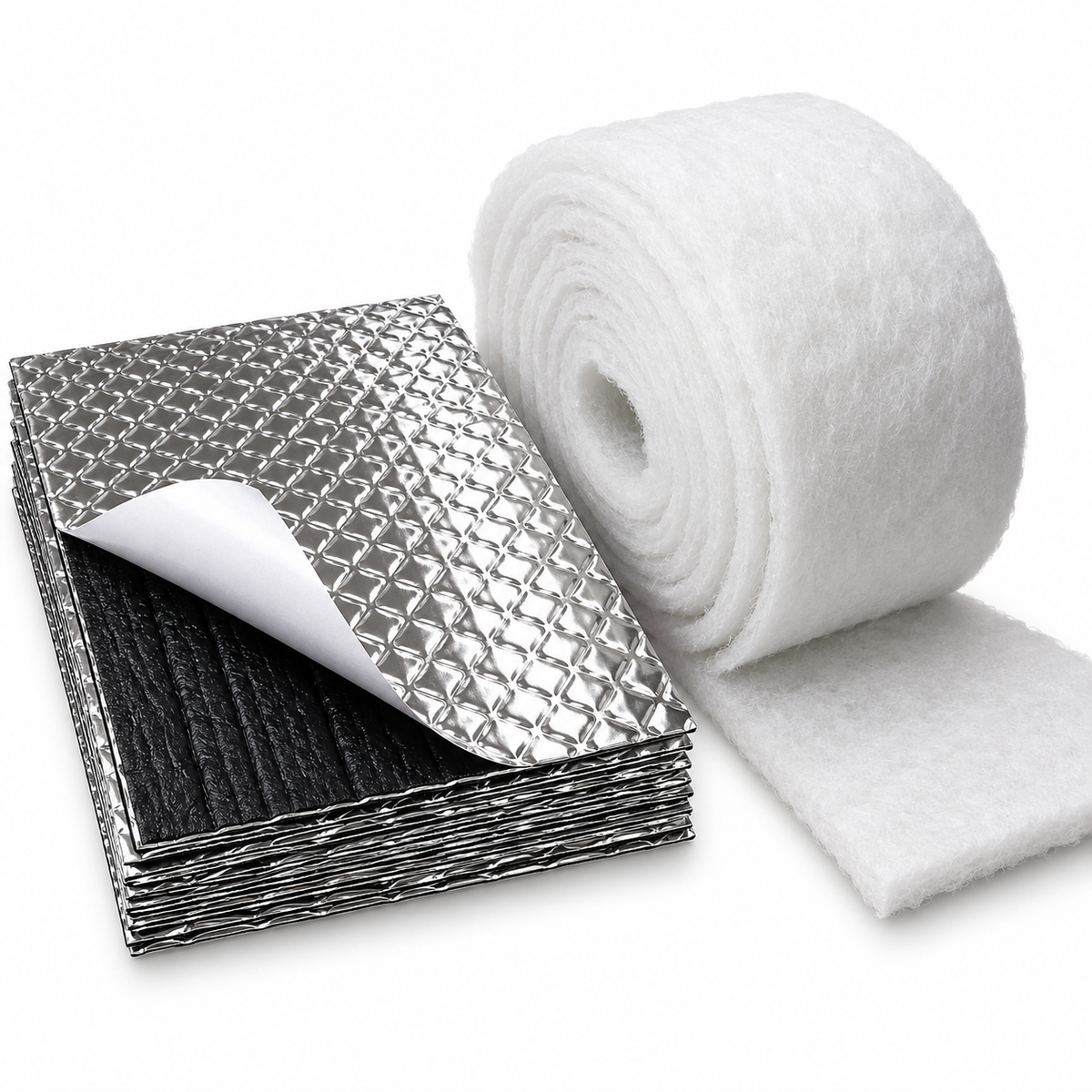

What's Included

PeaceMAT™ XR 2mm Sound Deadening - 10 Sheets

• Quantity: 10 sheets
• Sheet size: 20cm × 20cm each
• Total coverage: 0.4m² / approx. 4.3 sq ft
• Thickness: 2mm
• Automotive-grade butyl rubber
• Self-adhesive peel-and-stick backing
• Embossed aluminium surface
• Helps reduce vibration, rattles and panel resonance
• Water and oil resistant
• Fire retardant
• Temperature resistance: -40°C to +120°C

PeaceMAT XR is designed to be applied directly to clean vehicle metal and is particularly useful on large resonant panels. Car Insulation UK

ABSOFT™ 25mm Thermo Fleece - 5m Roll

• Roll size: 5m × 1m
• Coverage: 5m² / approx. 53.8 sq ft
• Nominal thickness: 25mm
• Polyester thermo fleece insulation
• Excellent sound absorption
• Thermal insulation
• Flexible and easy to cut
• Non-irritant and easy to handle
• Suitable for vehicle cavities and behind interior panels
• Flame retardant to FMVSS302 automotive standard

Your existing ABSOFT specification lists a nominal 25mm thickness, 325gsm weight, temperature stability of -20°C to +100°C and flame retardancy to FMVSS302. Car Insulation UK

Key Features & Benefits

• 2-layer van insulation system
• Combines sound deadening + sound absorption + thermal insulation
• Helps reduce road noise, panel vibration, rattles and resonance
• ABSOFT helps absorb airborne sound within vehicle cavities
• Helps improve thermal comfort inside vans and campervans
• PeaceMAT XR has a strong self-adhesive backing
• ABSOFT is flexible and easy to cut around vehicle cavities
• Suitable for DIY and professional van conversions
• Ideal for walls, doors, roof areas, rear quarters, load areas and other suitable interior panels
• Suitable for vans, campervans, motorhomes, cars and commercial vehicles

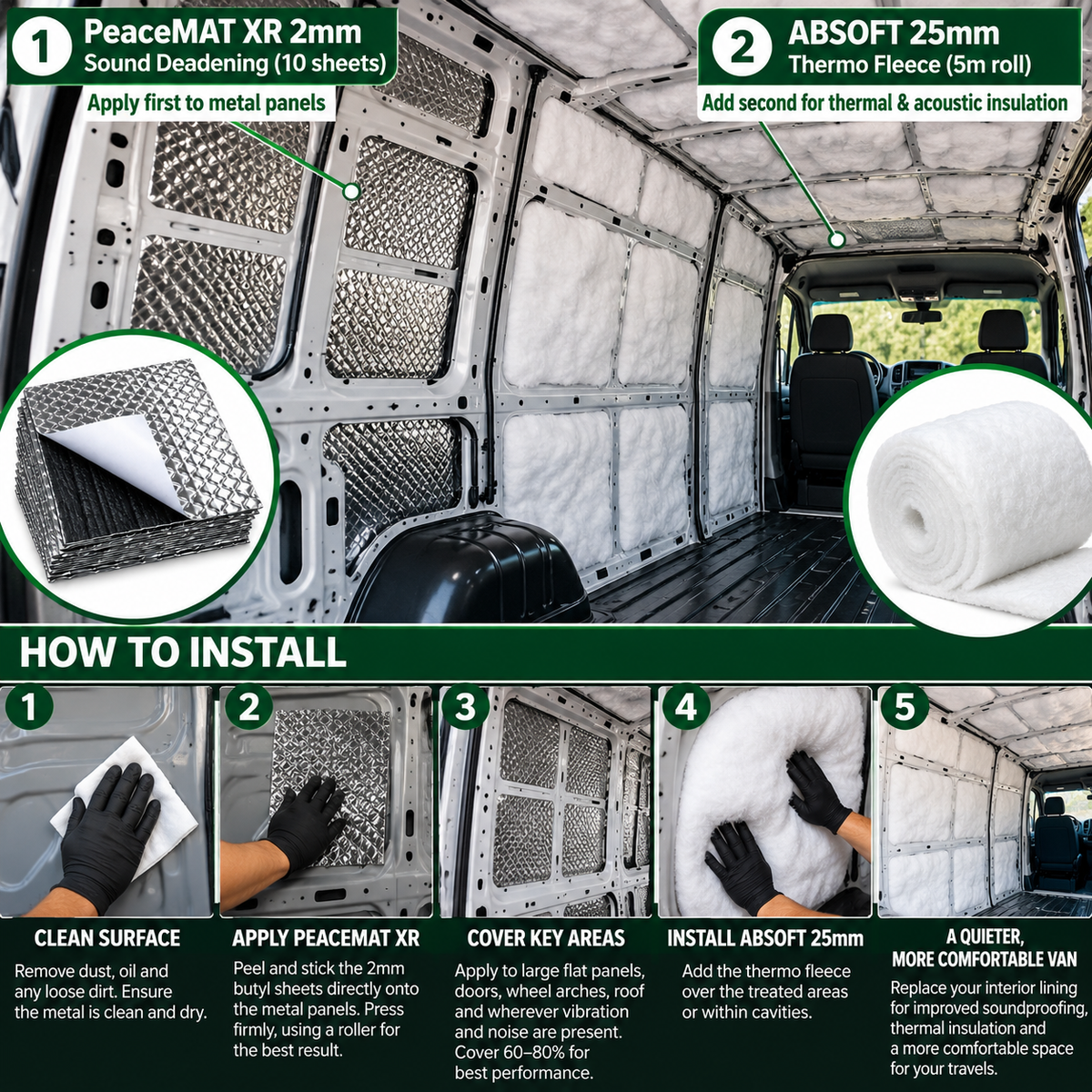

HOW TO INSTALL

Layer 1 – PeaceMAT XR

Clean and degrease the vehicle's metal surface thoroughly. Cut the PeaceMAT XR sheets as required, remove the release liner and apply directly to the metal.

Press firmly into place, preferably using a sound-deadening roller to ensure good contact and remove trapped air.

PeaceMAT XR does not necessarily need to cover every square centimetre of the vehicle. It can be strategically applied to large flat panels where vibration and resonance are greatest. Your current site recommends approximately 60–80% coverage on walls and doors, with greater coverage on floors and wheel arches. Car Insulation UK

Layer 2 – ABSOFT 25mm

Cut the ABSOFT thermo fleece to fit the required cavities and interior areas. Install it behind suitable trim and lining panels to provide additional thermal and acoustic insulation.

ABSOFT can be secured using suitable contact adhesive, double-sided tape or mechanical fixing methods depending on the application. Car Insulation UK
